| Classification: |
• |
Offshore Supply Vessel |
• |
T Boat designation as of 9/01/2004 |
• |
COI Certification: |
| |
42 Passengers on Domestic Voyages |
| |
12 Passengers on Intl Voyages |
• |
ABS Load Line Certificated
|
|
|
Built: |
• |
1976 Graham, Bayou La Batre, LA |
• |
Refit Date: 1999 / 2003 / 2008 |
|
|
Dimensions: |
• |
Overall Length 96', Beam 24', Draft 8'4", Air Draft 52' 6" |
• |

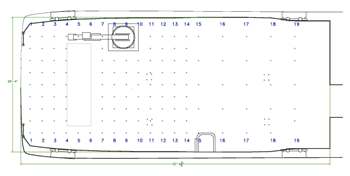

Main Cargo deck 50' x 22' |
|
|
Mooring Systems: |
• |
Anchors: Danforth |
• |
50,000 lb Line Pull Anchor Winch |
|
|
Deck Winch: |
• |
Manufacturer: Lantec |
• |
Barrel: 24" |
• |
Flange: 40" |
• |
Length: 36" |
• |
Pulling Capacity: 25,000 lbs |
• |
Wire Capacity: 5,200 ft of 1/2" Wire |
• |
Wire Currenlty on Winch: |
| |
600 ft of 20mm Hylift Galvanized |
• |
Weight Empty: 5,000 lbs |
• |
Weight Loaded: 5,785 lbs |
|
|
Oceanographic Winch: |
• |
Manufacturer: InterOcean |
• |
Pulling Capacity: 1,000 lbs |
|
|
Horizontal Capstan: |
• |
Pulling Capacity: 5,000 lbs |
|
|
Deck Crane: |
• |
Manufacturer: Effer / Model: 44 N-55 with winch |
• |
Capacities: |
| |
9,080 lbs at 5 ft |
| |
4,215 lbs at 41 ft |
• |
Winch Cable: |
| |
210 ft of 5/8" Non-Rotating Wire Rope |
|
|

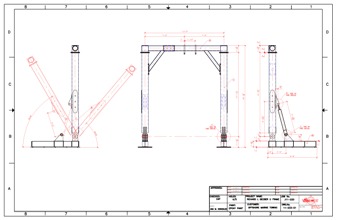

A-Frame: |
• |
Pin Height: 16' |
• |
Throat: 12' |
• |
Max Safe Working Load: 16,576 lbs |
• |
Weight: 11,000 lbs |
|
|
Accommodations: |
• |
Staterooms: |
| |
- 2 crew with 5 bunks |
| |
- 2 passenger, 1 with 4 berths, 1 with 8 berths |
• |
Full Galley with Barbecue Grill |
• |
Lounge Area: TV, Stereo, VCR, Satellite TV and Sirius Radio |
• |
WiFi Internet Access via 3G/4G Cellular Network
|
• |
VSAT Satellite Internet |
|
1 |
Air Conditioning / Heating: |
• |
Number of units: Keel cooled (2) |
• |
Central AC |
|
|
Capacities: |
• |
Fuel Oil: 18,743 Gallons |
• |
Lube Oil: 150 Gallons |
• |
Hydraulic Oil: 100 gallons |
• |
Potable Water: 1,056 Gallons with 1000 Gallon per day water maker |
• |
Ballast: 27,293 gallons |
• |
Cargo: 38 Long Tons
|
• |
Deck will accommodate 30 pallets
|
| |
|
Machinery: |
• |
Main Engines: (2) 12V71N Detroit |
• |
Generators: (2) 371N Detroit 30KW |
• |
Hydraulic Pump: 471N Detroit |
• |
Auxiliary Hydraulic ports on work deck 40-50 GPM at 1800-2200 PSI
|
• |
Welder: AC/DC 208V and oxygen-acetylene torch set |
• |
Nato Grid to secure deck loads and equipment
|
• |
Aft and Wheel House bulkhead pass-throughs |
| |
| Electronics / Navigation: |
• |
SSB: (1) Stevens SEA 222, (1) Stevens SEA 235 with Necoder |
• |
VHF: (2) Furuno FM8900S Class-A DSC |
• |
AIS: (1) Furuno FA150 Class-A AIS Unit |
• |
Hailer: (1) Stevens Loud Hailer |
• |
Fathometer: Furuno Dual frequency 50/200 KHz |
• |
Radar: (2) Furuno 810D 10 KW, 72/98 Mile range |
• |
Autopilot: Robertson AP45 |
• |
GPS: (2) Northstar 951X |
• |
Dell CPU with Nobeltec Navigation software |
• |
406 MHz EPIRB |
• |
Sat. Phone: Nera Fleet 77 Global internet w/ wifi access fax/phone |
• |
Weatherfax |
• |
Panasonic PBX system with TDMA and GSM cell service also land line
capabilities |
|
|
Equipment: |
• |
Offshore Marine Towing has a full compliment of salvage / dive equipment stored in our Pompano Beach warehouse and our mobile salvage response trailer. This inventory includes a variety of gas, diesel and electric pumps, lift bags, straps, lines, patching materials, underwater epoxy and more. This equipment can be put into service on the Richard L. Becker as needed. |
• |
18' Kropf Marine Tender with 60 HP 4-Stroke Yamaha outboard engine, and tow bitt (Weight: 2,400 lbs) |
|
|
Fuel Consumption: |
• |
Station Keeping - 23 GPH |
• |
1400 RPM Cruise (10 Knots) - 34 GPH |
• |
At Anchor - 13 GPH |
|
|
Range: |
• |
4,675 Miles |
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
